3D Modeling as an Analytical Tool: Reassessing the Spatial Layout of the Emamzadeh Yahya Complex in Varamin

Hossein Nakhaei

The Emamzadeh Yahya in Varamin today survives as a single domed chamber, but nineteenth-century photographs show that it was once part of a larger architectural complex including a monumental entrance portal and an octagonal tomb tower (figs. 1–3). Given the inability to excavate the site due to its function as an active cemetery, these photographs provide the primary evidence to investigate its earlier spatial configuration. Using simple 3D modeling aligned with photographs taken in 1881 and 1897, this lecture reassesses an earlier plan of the complex proposed by Donald N. Wilber in 1955 (fig. 4). The results suggest a more compact layout and offer a reinterpretation of key architectural features, including the eyvan in front of the domed chamber (fig. 5). More broadly, this study shows how 3D modeling can assist in interpreting spatial information embedded in historical photographs and provide an alternative method to reimagine lost architectural layouts when physical remains are limited and excavation is almost impossible.

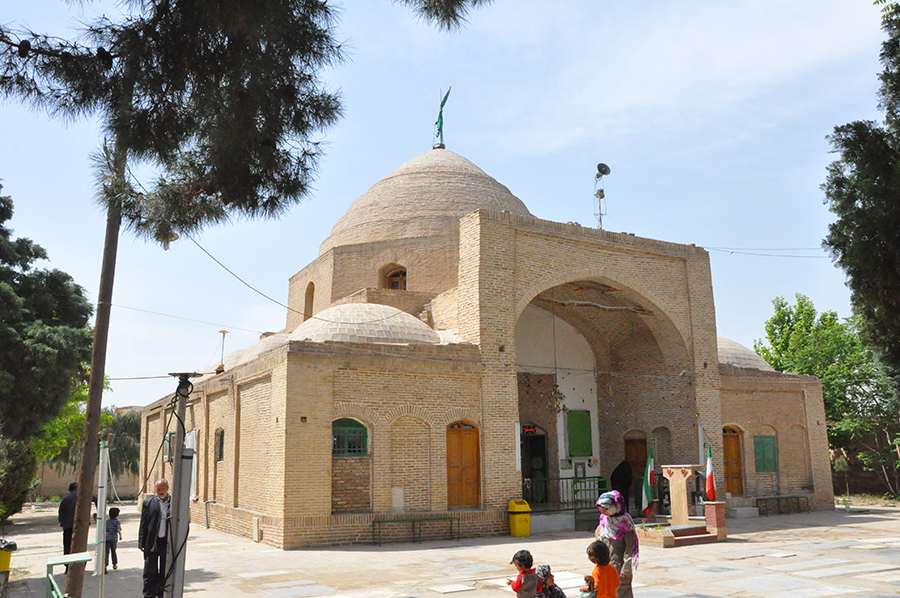

Figure 1. View of the tomb of Emamzadeh Yahya from the northeast corner of the courtyard. Photograph by Hossein Nakhaei, 2013.
Figure 2. General view of the Emamzadeh Yahya complex, taken from the northwest. Photograph by Jane Dieulafoy, June 1881, preserved in ‘Perse 1.’ Bibliothèque de l’Institut National d’Histoire de l’Art, Paris, 4 Phot 18 (1), p. 65, no. 129.
Figure 3. General view of the Emamzadeh Yahya complex, taken from the northeast. Photograph by Friedrich Sarre, 30 December 1897, reproduced in Denkmäler persischer Baukunst, 1910 (textband), p. 59. Source: Heidelberg University Digital Library

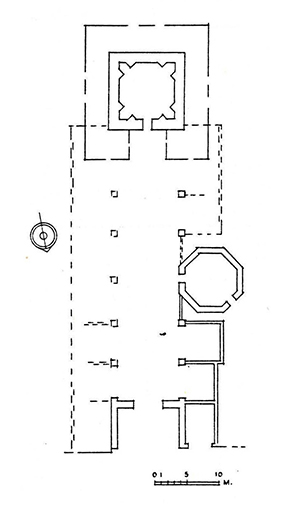

Figure 4. Donald Newton Wilber’s proposed plan of the Emamzadeh Yahya complex. After Wilber, The Architecture of Islamic Iran: The Il Khānid Period, 1955, fig. 6.

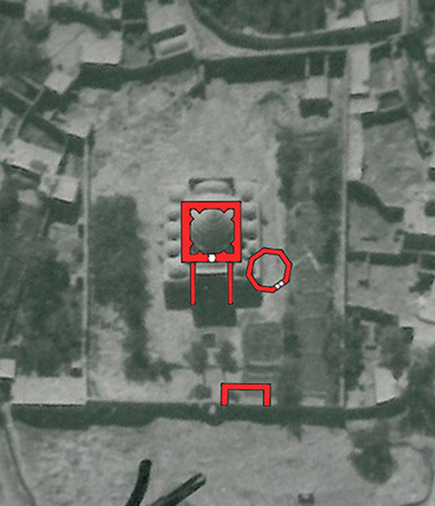

Figure 5. The author’s revised plan (in red) of the Emamzadeh Yahya complex overlapped with an aerial photograph of the site taken in 1343 Sh/1964. Source of the aerial photograph: The Center for Documentation and Research of the Faculty of Architecture and Urban Planning, Shahid Beheshti University, Tehran, acc. 879.
